Mitsubishi cars Door Trims/Drip Molding installation procedure?

See the pictures and read the instructions:---
Tools Required:

Philips Screwdriver
Putty Knife
Towel
Degreaser/Cleaner (Not needed really)

Parts Required:

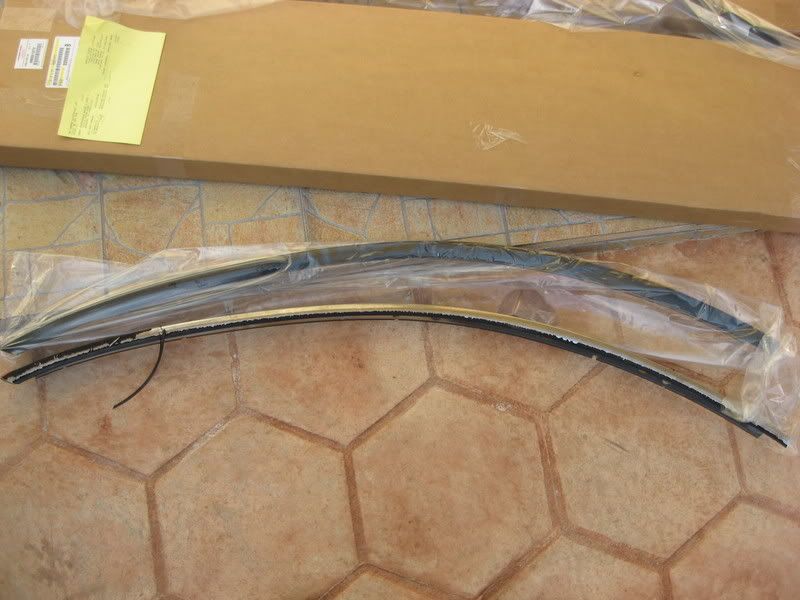

New Drip Mouldings

Drip Moulding RH Part # MB881974 $35.08 (Can be found cheaper)

This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.


Drip Moulding LH Part # MB881973 $35.08 (Can be found cheaper)

This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.

This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.

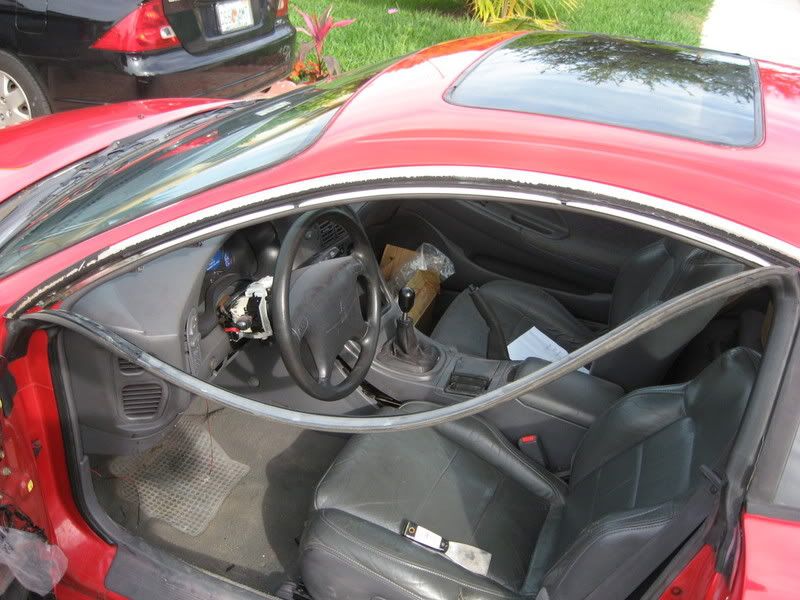

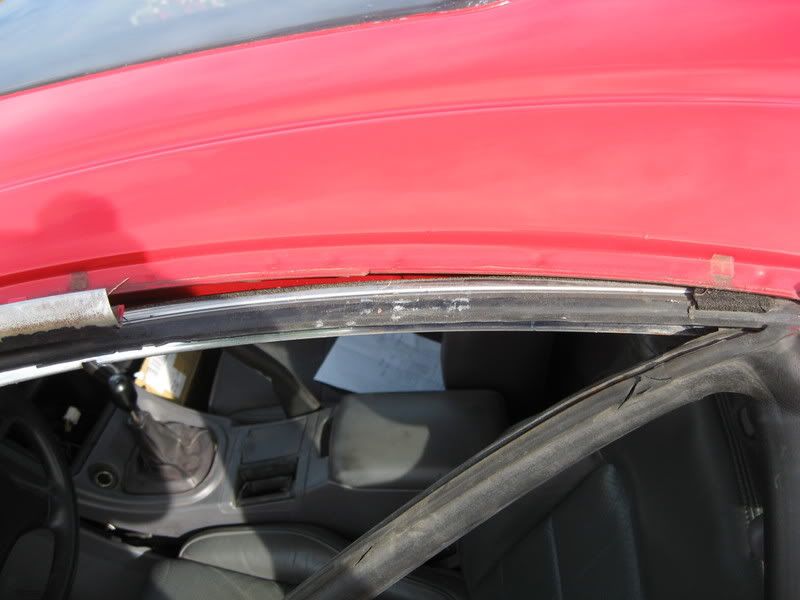

Remove the inner door insulation as shown in the pic. I used the putty knife and pulled it down towards the ground. The only part of the insulation that needs to be removed is pretty much what’s parallel to the old moulding.

This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.


Notice the section of door insulation that was removed.

This image has been resized. Click this bar to view the full image.

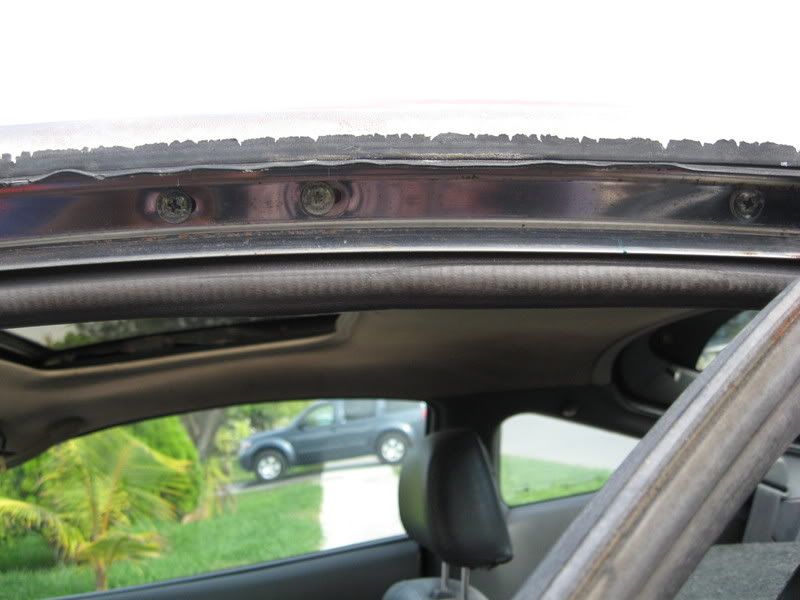

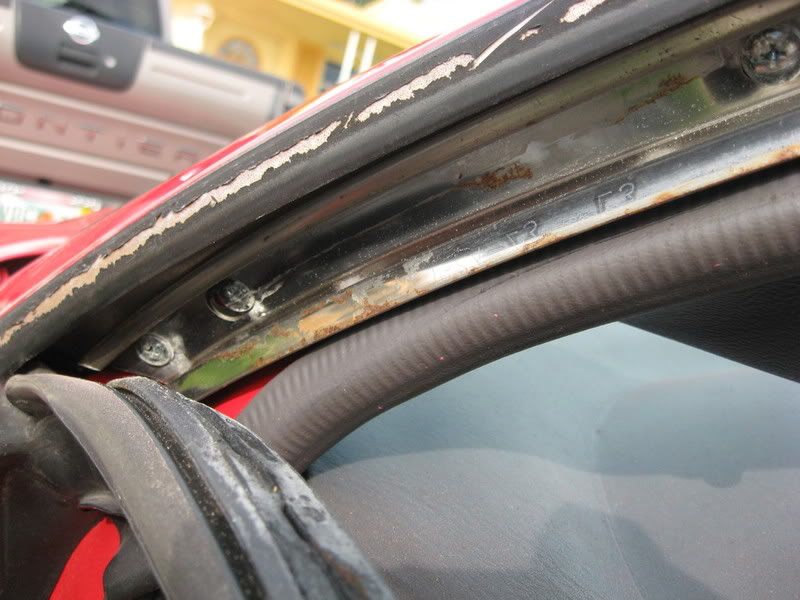

Now once the insulation is out of the way you’ll notice 10 Philips head screws that will need to be removed.

This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.


Now remove all 10 screws.

This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.

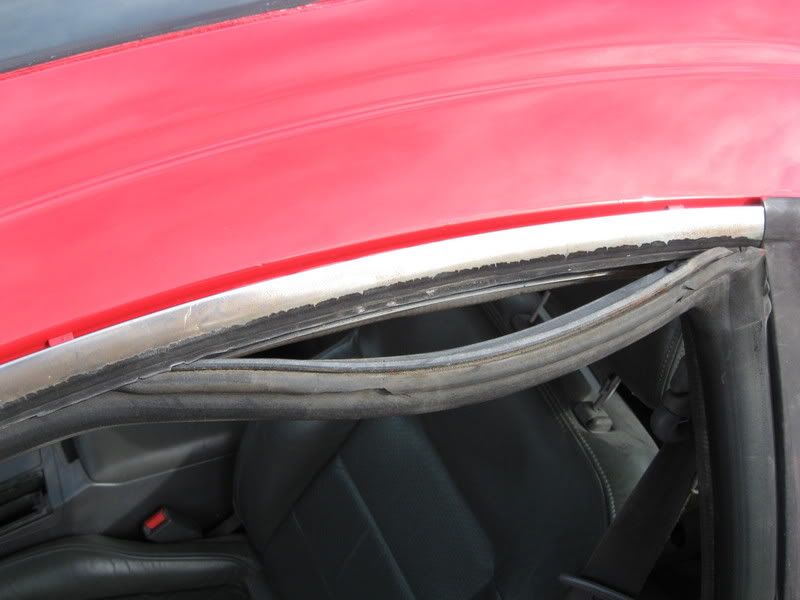

Now, when all 10 screws are removed you’ll see that there is a metal piece that sits on top of the actual moulding that you’re trying to remove. DO NOT remove that one.

This image has been resized. Click this bar to view the full image.


The old moulding actually slides out from where it’s installed. You slide it downwards towards the front of the car (fender area). It might be a little hard at first depending on how bad it’s stuck in there but it’ll come loose.

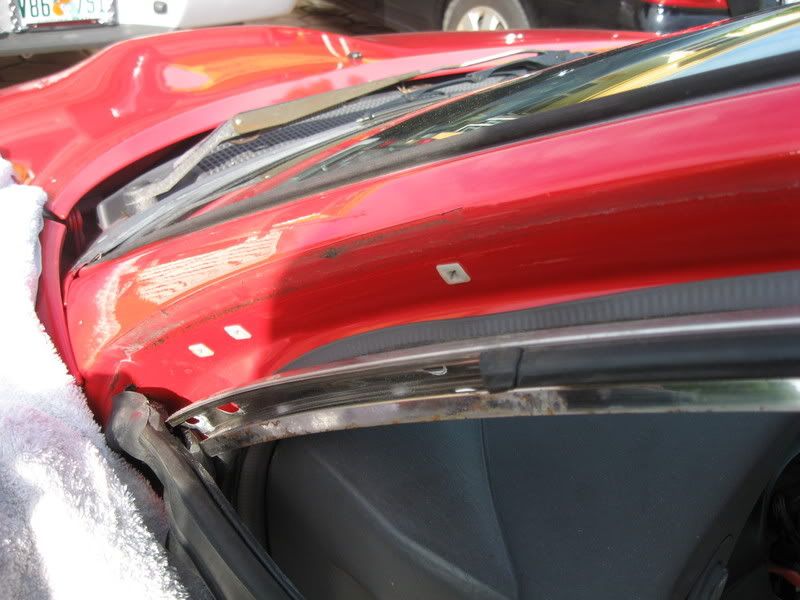

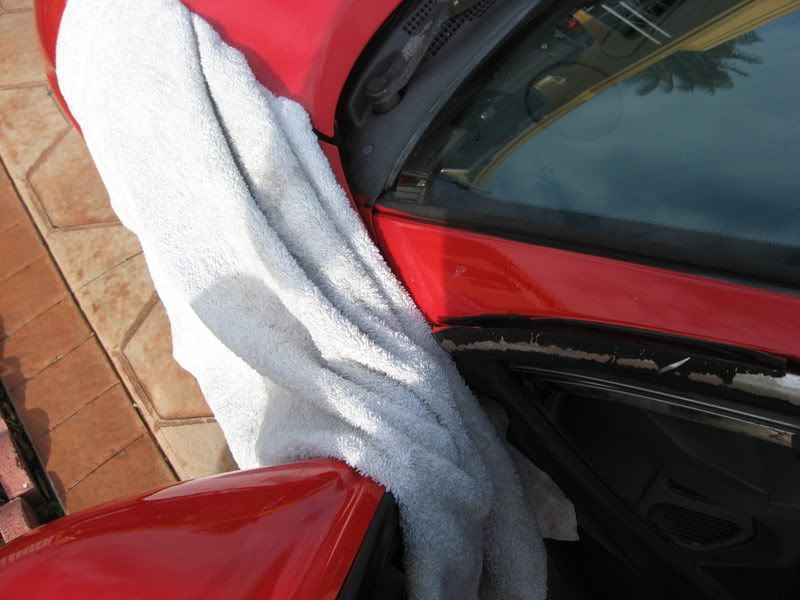

Place a towel in the area shown in the pic to prevent any scratches to your paint.

This image has been resized. Click this bar to view the full image.

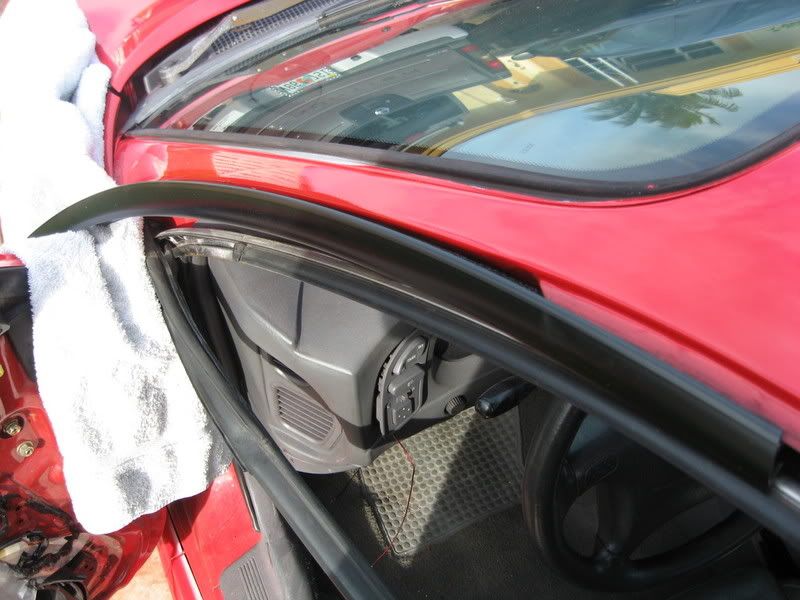

Now pull down the moulding towards the area of the towel and slide it out completely.
Pics for reference…

This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.

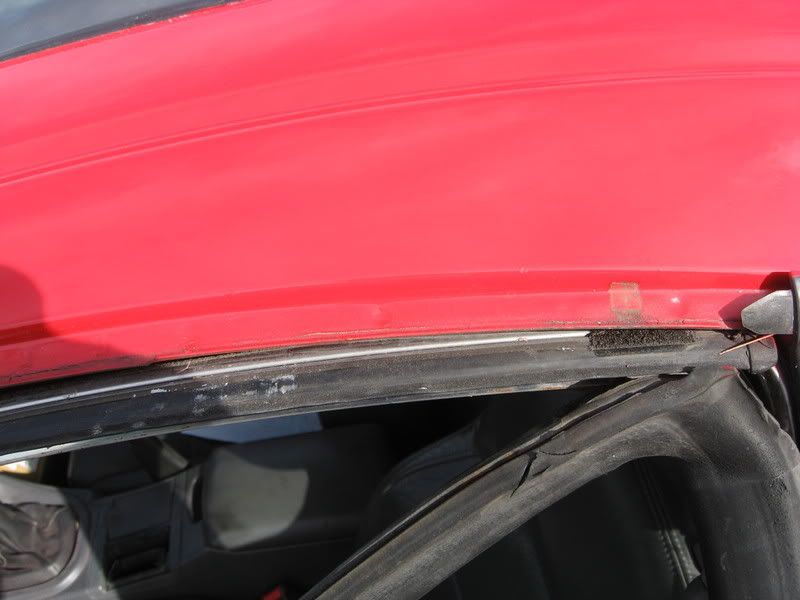

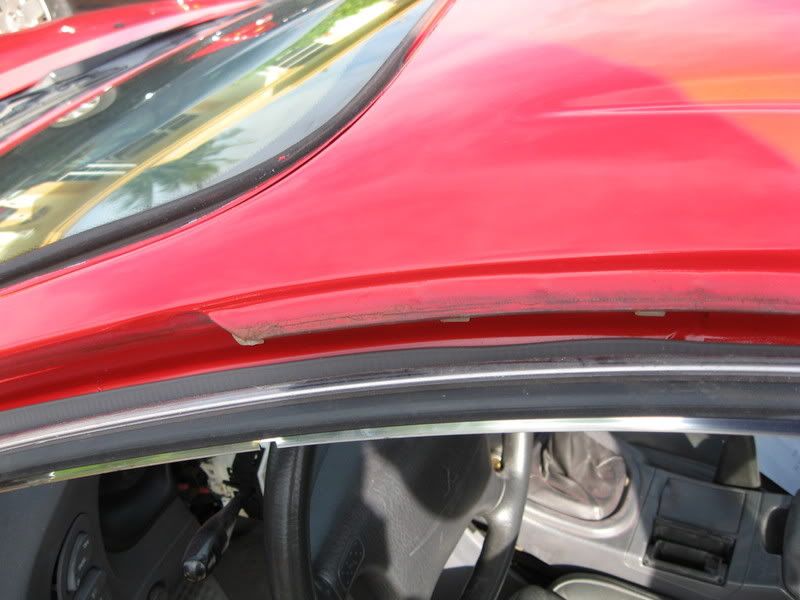

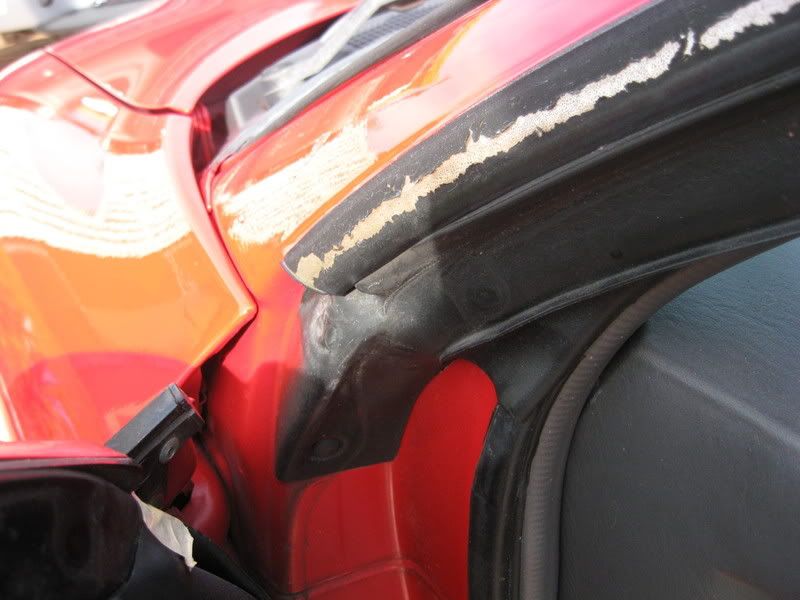

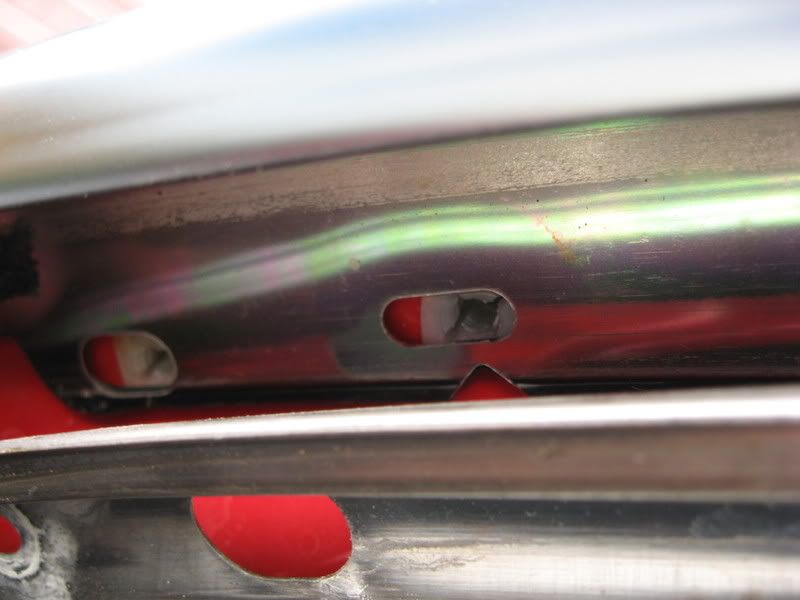

Here is what the area looks like with the moulding removed. Notice that the other metal trim is still there and you can see the screw holes also. You can use your cleaner (I used Simple Green) to get out all the 9-13 YEAR OLD dirt and grime out before installing the new mouldings.

This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.

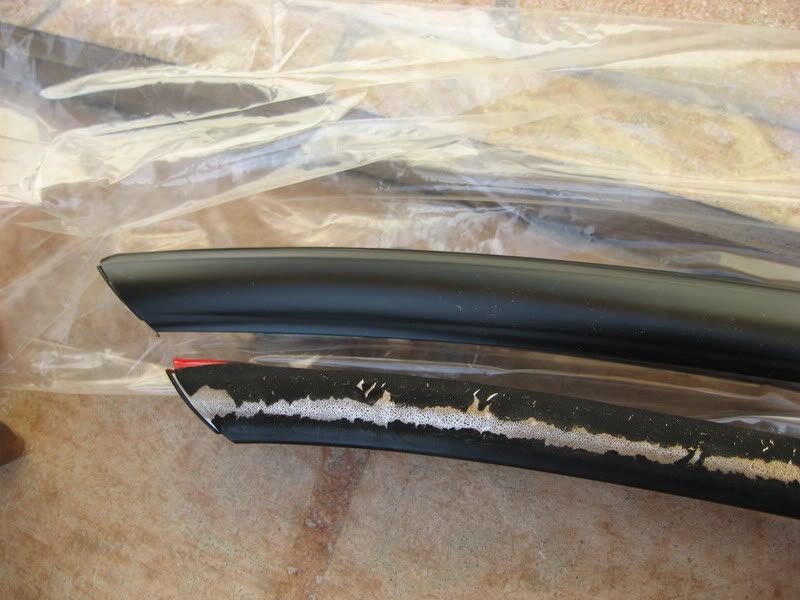

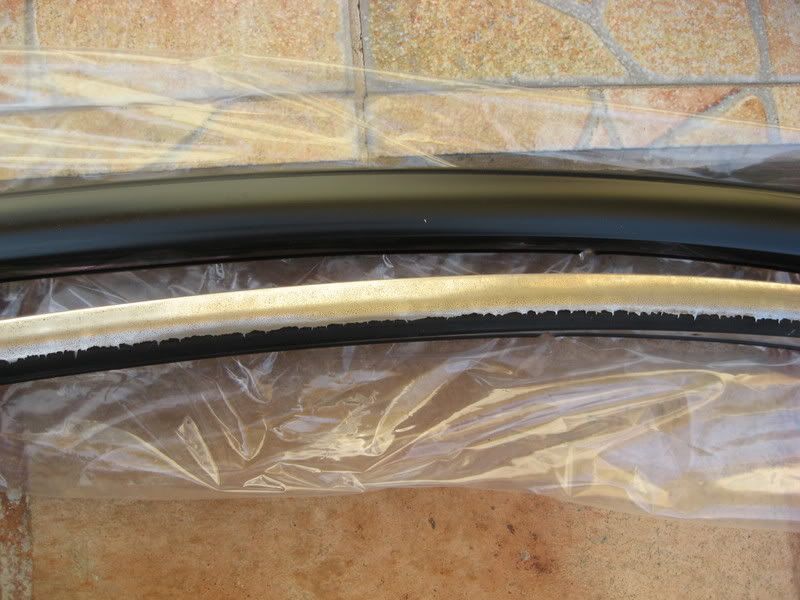

Now it’s installation time. I have a few comparison pics of the old and new mouldings.

This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.


Now installation is basically the opposite of removal so this should be pretty straight-forward. Slide the new moulding back in the area where the old one was removed from. Make sure the little black clip in the pic below is resting on the lip area.

This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.

Continue to slide the moulding into position

This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.

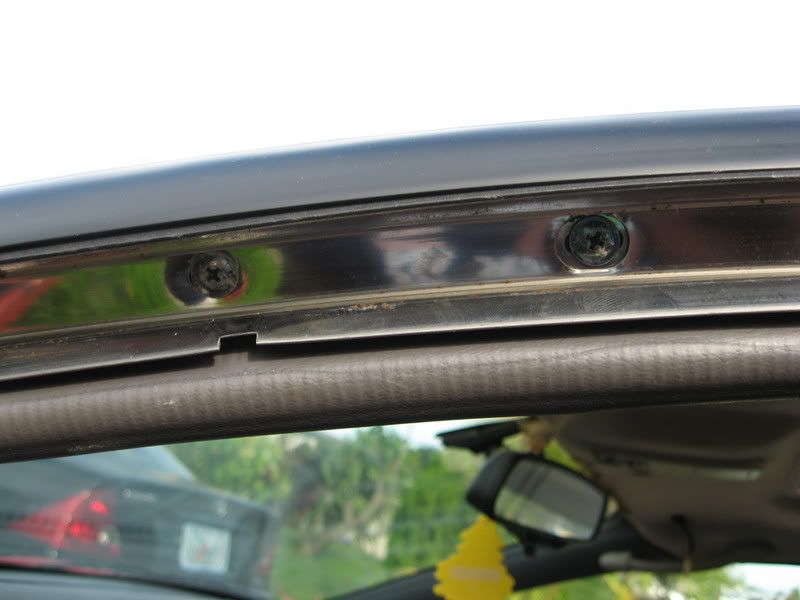

Once the new moulding is in position, make sure to re-install the other metal trim on top of the new moulding and make sure all holes are lined up. Install the screws loosely at first and then check the positioning of everything before tightening them down.

This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.

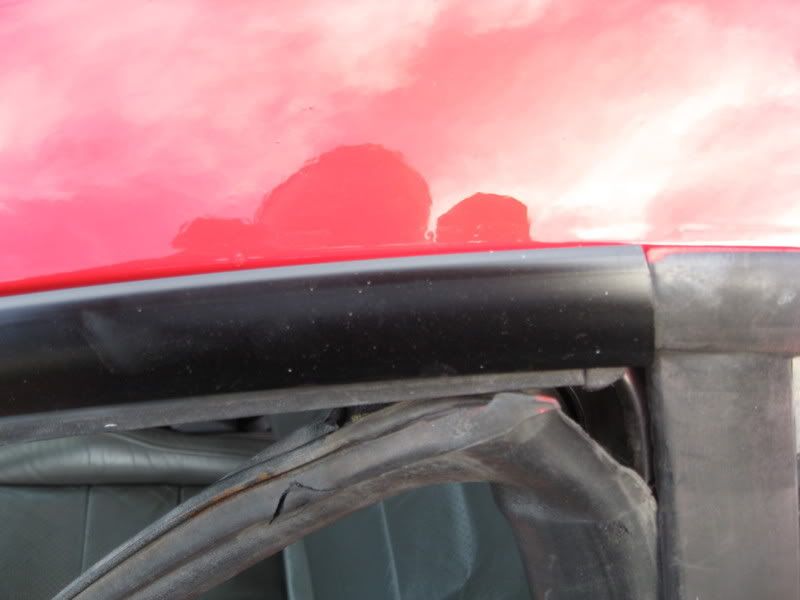

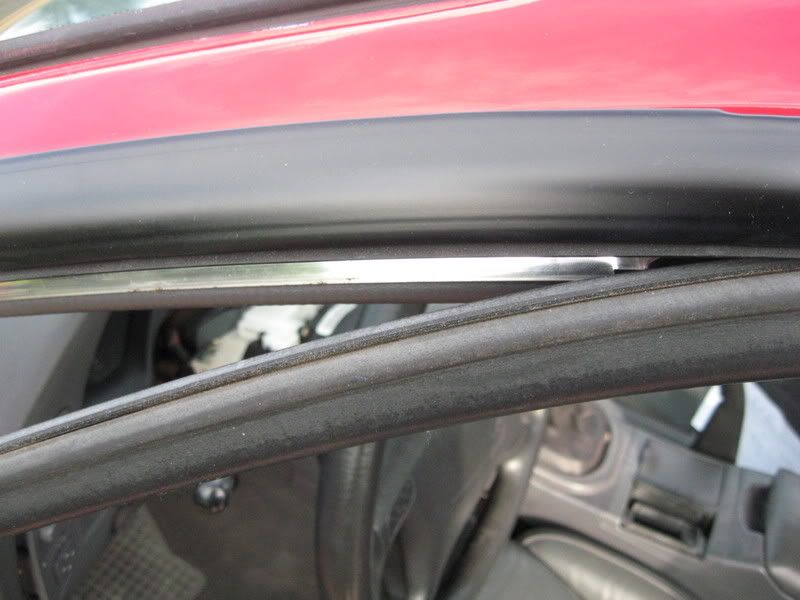

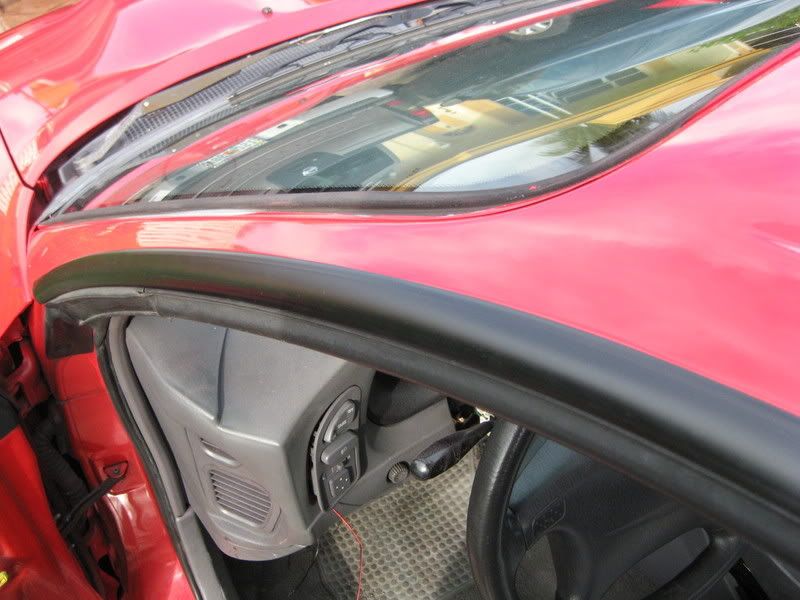

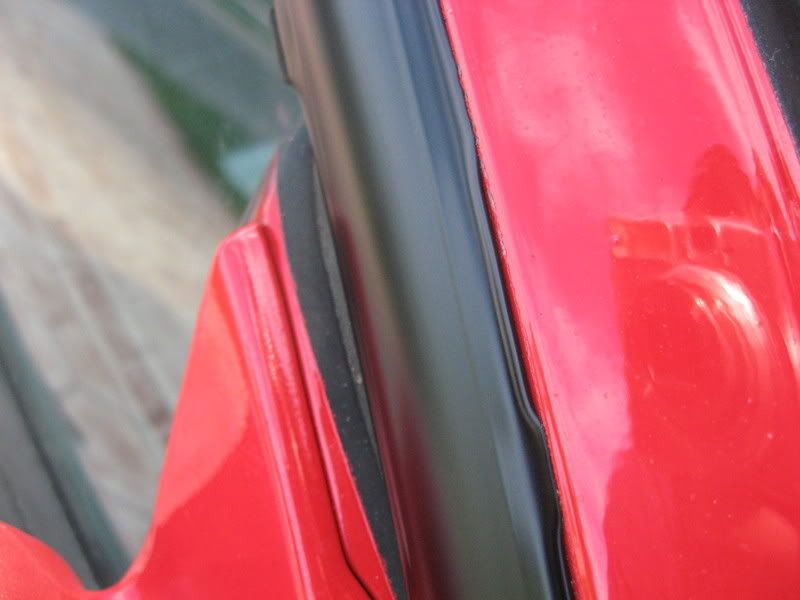

Reinstall the door insulation and kick back and look at how much better your car looks

This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.


This image has been resized. Click this bar to view the full image.


After I was finished I noticed that there were areas of the new moulding that needed to be “un-pinched” so I used the putty knife and took care of that too. Make sure to be careful and not scratch your paint.

This image has been resized. Click this bar to view the full image.
