Motherboard USB Connector Pin details

Motherboard USB Port Pin layout.

On a motherboard there is on-board USB connector.These USB connector is soldered to the motherboard.

There are 4 soldered pin.
Each pin is very important.

One pin is for power supply,one pin is for data in,one pin for data out and last one pin is ground pin.

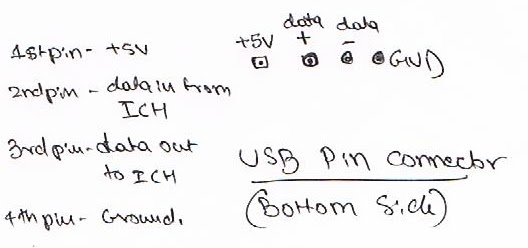

See the USB pin connector layout and its details mentioned below:-----

USB port layout on motherboard

These details will help.
Thanks.
